At present, we have different types of high sensitivity geophone sensors with sensitivity up to 600.00V/m/s. Meantime, low frequency geophone 2Hz with sensitivity 260.00V/m/s is the most popular geophone.
In addition, geophone 5Hz is a new trend of oil and gas seismic investigation, and the single 5Hz geophone is increasingly applied to replace multi-geophone strings.
|
Type |
1 Hz Vertical Geophone |
1 Hz Horizontal Geophone |
|
Natural frequency (Hz) |
0.75 ± 0.1 |
0.75 ± 0.25 |
|
Damping |
0.5 ± 15% |
0.5 ± 20% |
|
Sensitivity (V/m/s) |
650 ± 15% |
650 ± 20% |
|
DC Resistance (Ω) |
33000 ±10% |
33000 ± 10% |
|
Distortion (%) |
≤0.9 |
≤0.9 |
|
Moving mass (g) |
770 |
770 |
|
Max coil extrusion p-p (mm) |
6.0 |
6.0 |
|
Element height (mm) |
107.0 |
107.0 |
|
Element weight (g) |
1400.0 |
1400.0 |
|
Operation temperature (℃) |
-40 to 90 |
-40 to 90 |
|
All above data are rated at temperature 20±2 ℃ |
||
|
Type |
2 Hz Geophone |
|
Natural frequency (Hz) |
2 ± 0.1 |
|
Damping |
0.7 ± 15% |
|
Sensitivity (V/m/s) |
260 ± 15% |
|
DC Resistance (Ω) |
6400 ±10% |
|
Distortion (%) |
≤0.3 |
|
Element height (mm) |
47.0 |
|
Element weight (g) |
Vertical 264.0g / horizontal 273.0g |
|
Operation temperature (℃) |
-40 to 100 |
|
Working direction |
Vertical / horizontal / three-component |
|
All above data are rated at temperature 20±2 ℃ |
|
|
Type |
5 Hz Geophone |
|
Natural frequency (Hz) |
5 ± 0.1 |
|
Damping |
0.6 ± 7.5% |
|
Sensitivity (V/m/s) |
80.0 ± 5% |
|
DC Resistance (Ω) |
1850 ±5% |
|
Distortion (%) |
≤0.1 |
|
Moving mass (g) |
22.8 |
|
Max coil extrusion p-p (mm) |
3.0 |
|
Element height (mm) |
44.0 |
|
Element weight (g) |
166 |
|
Operation temperature (℃) |
-40 to 80 |
|
All above data are rated at temperature 20±2 ℃ |
|

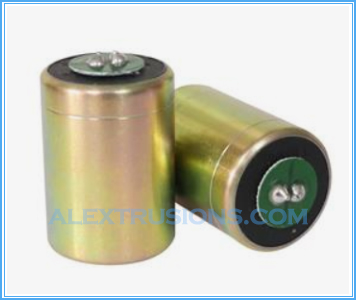

We supply all these high sensitivity geophones in the status of geophone sensor and land cased geophones with vertical direction or horizontal direction optional. High sensitivity geophones in triaxial geophone structures are also available.
If you can't find the proper one for your need, welcome to contact us for more details.
